Pressure Transmitter 7MF0300-1QE01-5AM2-Z B20+E01+E84+Y01+Y15+Y21
MLFB / Order No.: 7MF0300-1QE01-5AM2-Z B20+E01+E84+Y01+Y15+Y21Prices are indicative USD list prices. Final pricing depends on quantity, destination and current exchange rate — confirmed in your quote within 24 hours. Availability is confirmed per request.
Product Description
SITRANS P320 Pressure transmitter Gauge pressure HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 16 bar (232 psi) Female thread 1/2-14 NPT Process connection: Stainless steel 316L/1.4404, Seal diaphragms: Stainless steel 316L/1.4404, Sensor differential pressure: Process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device no Ex 2 x 1/2-14 NPT With display (lid with glass window) Labeling type plate English - psi General approval without Ex approval: World (CE, UKCA, RCM, CSA, EAC, FM, KC) NSF61 (Drinking water) Measuring range setting: Lower range value (max. 5 characters), Upper range value (max. 5 characters), Unit (mbar, bar, kPa, MPa, psi, ...) Example: -0.5 ... 10.5 psi (stainless steel plate) Location designation (Tag) (stainless steel plate. device parameters. max. 32 characters) TAG plate without marking please order via option D40 Display: (pressure. % of range). pressure reference (none. absolute. gauge). example: pressure gauge
- ManufacturerSiemens
- Product NameSITRANS P320
- Order Number7MF0300-1QE01-5AM2-Z
- Product DescriptionAutomation Component for industrial automation and control applications.
- Product TypePressure Transmitter
- Applicationindustrial automation and control applications
- CategoryIndustrial Automation > Process Instrumentation and Sensors
- Product SeriesSITRANS P320
- CertificationsCSA
- MaterialStainless Steel, Aluminum
- Displaydisplay
- HS Code (8-digit, Preliminary)90262010
- OriginGermany
- Warranty12 months
Related
Often Ordered Together
3WL1208-3CB35-5FA2-Z C01+C22+K07+S01

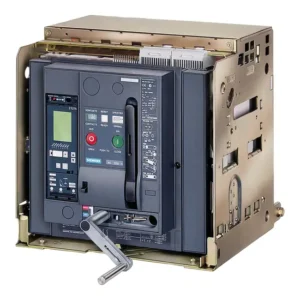

Circuit Breaker 3WL1208-3CB35-5FA2-Z C01+C22+K07+S01
