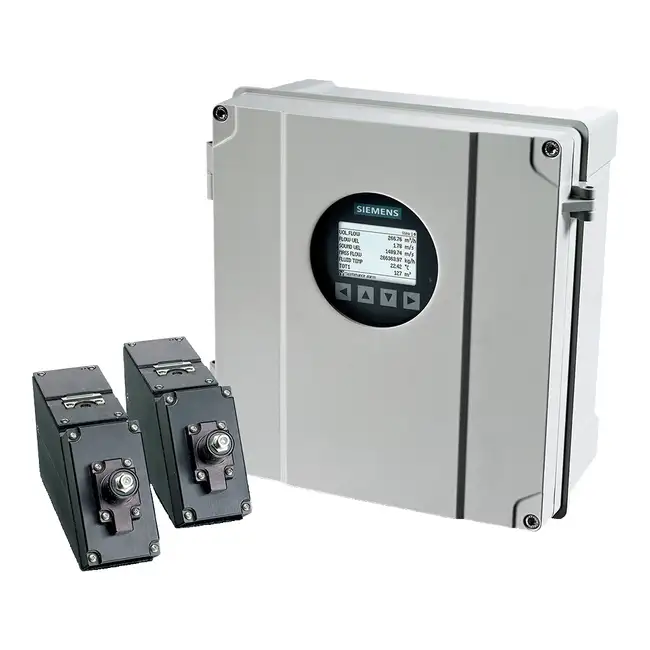

Ultrasonic Flowmeter 7ME3723-7FG21-1UA3-Z A61+B11+E02+F01+K24+S30

SITRANS FS230 Clamp-On Ultrasonic Clamp-on flowmeter, pipe size range 13 to 9144 mm(0.5" to 360"). Suitable for volume flow measurement of liquids and gases , for applications in water & wastewater, HVAC, power, processing and hydrocarbon industry. Transmitter FST030 Sensor FSS200 for Liquid on non steel/(plastic) pipes Temperature -40°C to +121°C (-40°F to 250°F) Pipe outer diameter >76 - 127 mm (3.0 - 5.0 in) Pipe wallthickness >4.1 - 5.8 mm (0.16 - 0.23 in) Standard frames/tracks: includes straps (frames and spacer-bar on pipes >125 mm (0.5 inch)) Single Path (one sensor pair) Standard Environment Aluminum wallmount, epoxy coated, NEMA 4X, IP66/67, internal DSL, internal 24 - 230 V DC/AC power, for 1 and 2 path measurement 9 cable entries with M20x1.5 thread Transmitter and sensor without EX-approval Graphical display, 240x160 pixels, highlighted, sensor keys operable through window Nine 1/2 inch NPT adapters for M20x1.5 cable entry, nickel plated brass (for conduit use) For Standard Industry Applications (Liquids, e.g. Water) HART, 4-20mA active/passive, non Ex Non Ex, Active/Passive: Ch2: Current/Freq./Pulse, Ch3: None Ch4: None. 10m (32.8') Standard, Submersible Coax sensor cable pair with Nylon glands Enable Mass storage device function for SD-card by USB (outside USA nomally "yes").
