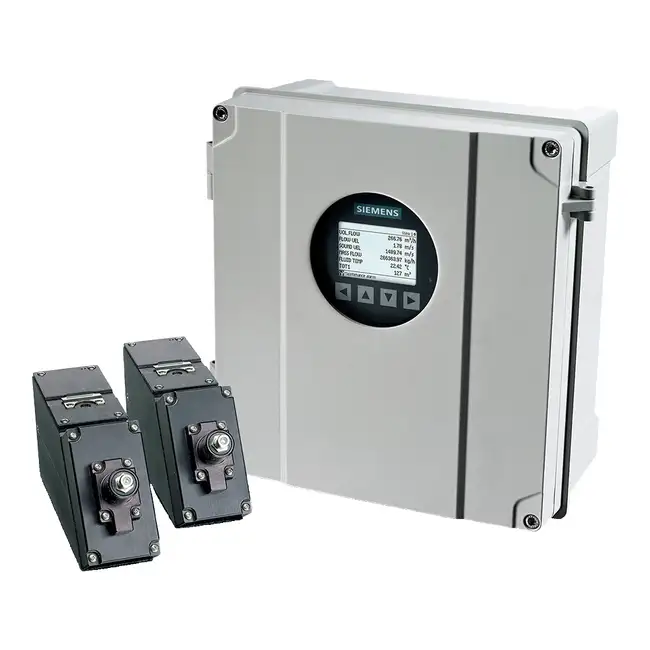

Ultrasonic Flowmeter 7ME3723-1KH12-1WA3-Z A84+B11+C19+E14+F06+G01+T24

SITRANS FS230 Clamp-On Highly accurate flow meter in the industrial sector for water supply, for crude oil or petroleum products or for gas transport in pipelines Transmitter FST030 Sensor FSS200 for gas/liquid on steel /stainless steel pipes, optimized for average medium temperature below 80°C (176°F), specification range: -40°C to +121°C (-40°F to 250°F) Outer pipe diameter >508 - 1200 mm (20 - 48 in) Pipe wall thickness >5.8 - 8.1 mm (0.23 - 0.32 in) Mounting straps slotted (stainless steel), includes spacer-bar (Aluminum) Dual Path (two sensor pairs) Sensor: 7ME39505GN00 (FSS200, HP-C2HC-T1, Liquid/Gas) Standard Wall mount enclosure with external DSL, aluminum - epoxy coated IP 66/67, NEMA 4X, internal universal power supply 24 - 240 V DC/AC (50 / 60Hz), for 1 - 4 path for SSL-cable terminal block, 11 cable entries M20x1.5 thread No EX-approval Illuminated display sensor keys Cable glands polyamide M20x1.5, 9 + 15 blind glands Standard Industry application (Liquids, e.g. water) Factory certification 2.2 to EN 10204:2004 Modbus RTU (RS485), no Ex, Ex Channel 2: non-Ex, activ/passiv Current/Freq./Pulse Channel 3: Relay FS-DSL mounting kit for stanchion pipe DN 50 (2 in) U-clamp Sensor cable set 2-pair to external DSL / transmitter, Coax cable submersible, 10 m (32.8 ft), with F-connector, shortenable, terminated on one end side, incl. cable gland Nylon M20 x1.5, gland sensor plastic, F-connector
