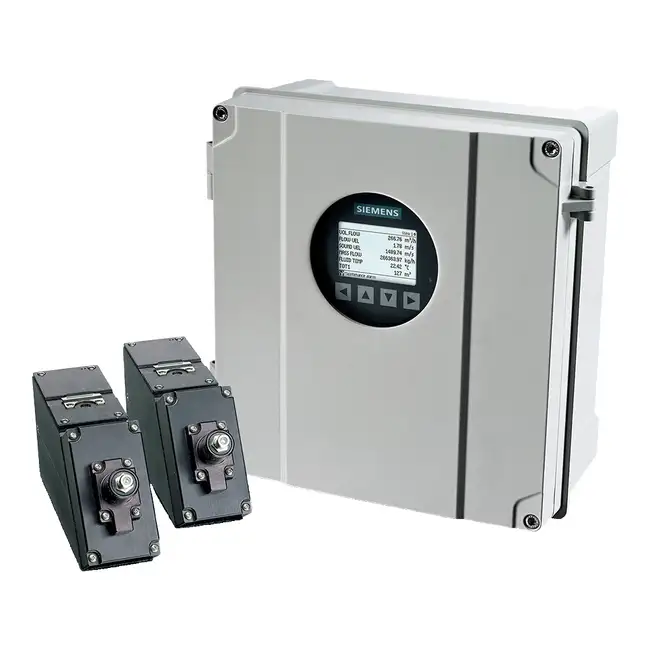

Ultrasonic Flowmeter 7ME3720-7JH21-1NA0-Z A01+B11+E00+F00+K25+S30

SITRANS FS230 Clamp-On Highly accurate flow meter in the industrial sector for water supply, for crude oil or petroleum products or for gas transport in pipelines System without transmitter, order transmitter separately Sensor FSS200 for liquid on non steel / non plastic pipes, specification range: -40 ° C to + 121 ° C (-40 ° F to 250 ° F) Outer pipe diameter >305 - 508 mm (12.0 - 20.0 in) Pipe wall thickness >5.8 - 8.1 mm (0.23 - 0.32 in) Frames/tracks (aluminum) includes straps (frames and spacer-bar on pipes bigger 125 mm (0.5 inch)) Single Path (one sensor pair) Sensor: 7ME39505LE00 (FSS200, Uni D3C, Liquid) Empty field / 1 fixed pre-assigned! External Digital Sensor Link without transmitter, aluminum - epoxy coated IP 66/67, NEMA 4X, for 1 - 4 path for SSL-cable M12-plug, 11 cable entries M20x1.5 thread No EX-approval No transmitter, external DSL only, without user interface None cable glands Standard Industry application (Liquids, e.g. water) No input /output channel No optional inputs and outputs Sensor cable set 1-pair to external DSL / transmitter, Coax cable submersible, 20 m (65.6 ft), with F-connector, shortenable, terminated on one end side, incl. cable gland Nylon M20 x1.5, gland sensor plastic, F-connector Enable Mass storage device function for SD-card by USB (outside USA nomally "yes").
